This is a short introduction to the basics of compilation using Clang.

A. Stages of compilation

The Clang project provides a language front-end and tooling infrastructure for languages in the C language family (C, C++, Objective C/C++, OpenCL, CUDA, and RenderScript) for the LLVM project. But what happens when we try to build a program? Any C compiler can understand the process involved in the following 4 stages:

  1. Preprocessing
  2. Compiling
  3. Assembling
  4. Linking

At the end of these 4 stages we should have a single executable file. Given below are the description of these 4 stages that happens using Clang compier, regardless of the Operating System.

A.1 Preprocessor

This is the first pass of any C compilation. This stage includes:

  1. Removal of Comments
  2. Expansion of Macros
  3. Expansion of the included files.
  4. Conditional compilation

In clang we an view the output of a preprocessor by issuing the command

clang -E <input C file>

The preprocessed output is stored in the <c-file>.i.

Let us try it out. First write out the most famous hello world program in C.

cat << EOF > hello_world.c
#include <stdio.h>

#define STR "Hello World"

/* Multi-line Comment -
 * Starting main function here
 */
int main()
{
  // Printing Hello World
  printf("%s\n", STR);
  return 0;
}
EOF

Now let us see what the clang preprocessor does to this program. To get an out put of the preprocessor we use the -E option.

clang -E hello_world.c > hello_world.i

Now view the file using vi

vi hello_world.i

There must be over 700+ lines in this file. This is because the preprocessor expanded the header file stdio.h, expanded the macro (#define STR) statement and stripped off the comments. The new main function can be found towards the end of the file.

A.2 Compiler

This is the second pass of a C Compilation. It takes the output of the preprocessor and the source code, and generates assembler source code. Clang generates the LLVM IR as an intermediate representation.

A lots of process happen during this pass. Clang takes in the pre-processed input and splits in into different token. Each word in the given input file represents a token. Clang has a TokenKind database, which includes normal tokens like tok::ampamp (corresponding to the && token) as well as keywords for various languages.

For instance, in our example hello_world program tok::l_paren, tok::r_paren, tok::l_brace or tok::r_brace are punctuators, tok::comment is a comment, tok::int or tok::return are keywords, while main or printf are identifiers, and "Hello World" is a string literal. If any token does not match a clang::TokenKind, then Clang generates an error. To run syntax analysis on the file we can use the option -fsyntax-only.

clang -fsyntax-only hello_world.c

Once tokenized it parses the code to create an Abstract Syntax Tree (AST).

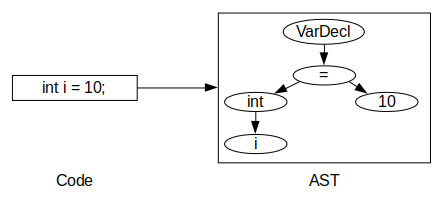

A Sample C Code converted to AST

To view the AST we can use the option -ast-dump.

clang -cc1 -ast-dump hello_world.c

Here the -cc1 argument indicates the compiler front-end, and not the driver, should be run. Hence the file is not linked further.

Then it lowers the AST into an unoptimized LLVM IR.

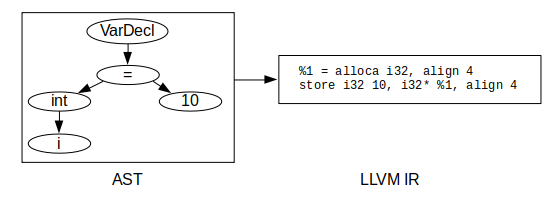

A Sample AST converted to LLVM IR

To generate the LLVM-IR we use the option -S -emit-llvm

clang -S -emit-llvm hello_world.c

This will generate a file named hello_world.ll. This IR is in Single Static Assignment (SSA) format. View the file as

vi hello_world.ll

Most of the optimizations happen next in this pass of compilation. To run an optimization we can use the opt command. Suppose we want to run an optimization -print-function on the generated LLVM IR. We will run the command as follows:

opt -print-function < hello_world.ll

A.3 Assembler

Assembly is the third pass of compilation. It takes the assembly source code and produces an assembly listing with offsets. The assembler output is stored in an object file. This file contain machine level instructions. At this stage, only existing code is converted into machine language, the function calls like printf are not resolved.

In LLVM the llc command compiles LLVM source inputs into assembly language for a specified architecture.

llc hello_world.ll -march=x86-64 -o hello_world.s

This command will produce an assembly for the x86 64-bit architecture.

Similarily if we want to directly generate the object file using clang we will use the -c option

clang hello_world.c -c -o hello_world.o

A.4 Linker

The assembly language output can then be passed through a native assembler and linker to generate a native executable. In this pass, it takes one or more object files or libraries as input and combines them to produce a single (usually executable) file. In doing so, it resolves references to external symbols, assigns final addresses to procedures/functions and variables, and revises code and data to reflect new addresses (a process called relocation). In Clang we can link different libraries with the assembled code using the -L option.

clang hello_world.s -Wall -o hello_world

We can test our file by running the executable

./hello_world

Congratulations you have successfully completed the Clang basics of compilation tutorial. Now you can start with the next step of modifying the Clang compiler. The first tutorial to follow in that is - Adding a New Directive in OpenMP (Clang).
