This tutorial is to show how to fix OpenMP implementation bugs in ROSE compiler.

A. Overview

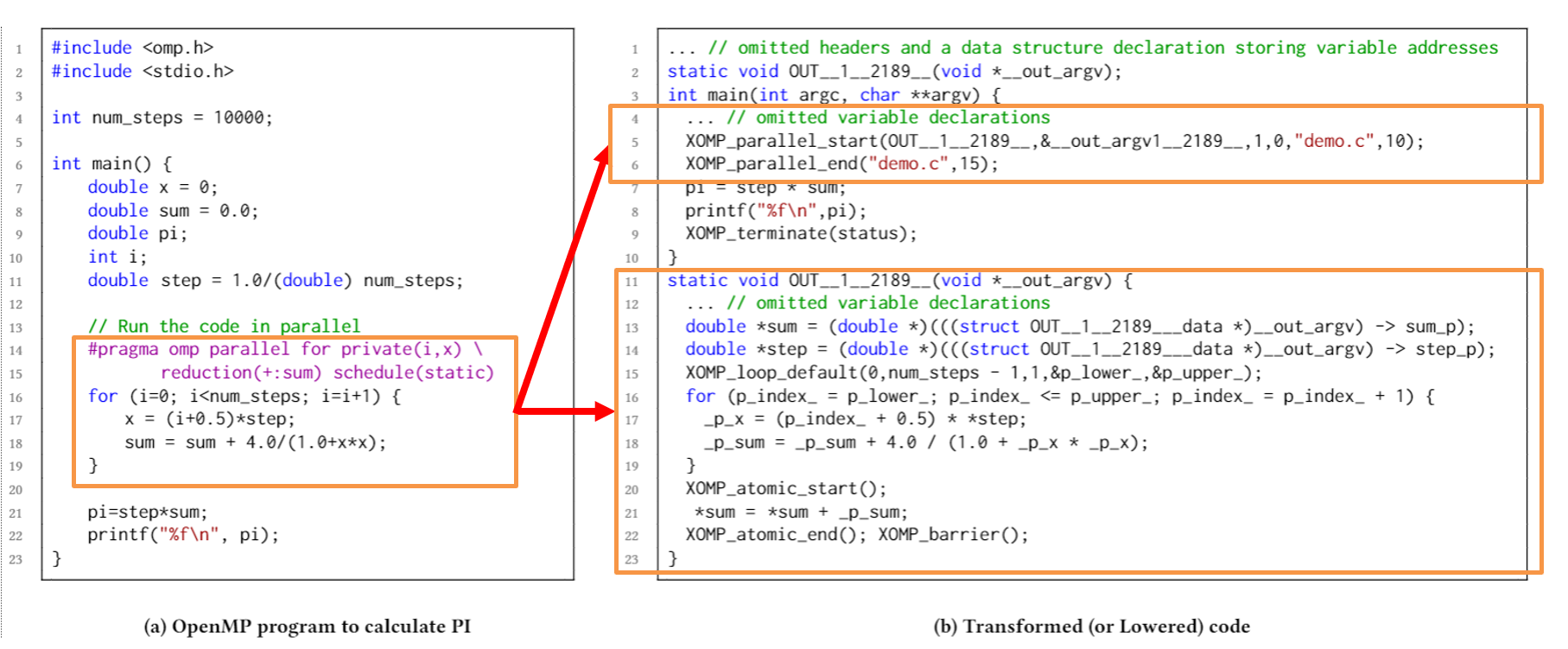

OpenMP Lowering by ROSE, using PI as an example

When ROSE transforms (also called lowers) the omp parallel for directive, there are several steps involved:

The compiler outlines the parallel region into an outlined function (usually named OUT__X_xxx(…)).
Inside the outlined function, each thread will execute a different portion of the for loop. The beginning, ending index and step of for loop has to be calculated carefully to enforce correct result. This calculation is performed by a runtime library call doing loop scheduling (e.g. XOMP_loop_default(…)). ROSE inserts a call to this loop scheduling function right before the loop to obtain the right index range and step (or stride).
The compiler finally replaces the original parallel region with another runtime call (named XOMP_parallel_start(..)) which accepts a function pointer to the outlined function. This runtime function will fork multiple threads to execute the generated outlined function.

When there are bugs in either OpenMP lowering or runtime loop scheduler or both, the calculation may result in wrong results.

Plese execute the following code to check out an old version of ROSE with a bug, which was reported by a user:

cd $ROSE_SRC &&
git checkout -b v0.9.11.138

B. Reproduce the Bug

The input program demonstrating the bug is a classic PI calculation program. An earlier version of ROSE compiles it and generates an executable. But the result is not the expected value (3.141596). Sometimes the execution even crashes.

First, we try to reproduce the bugs:.

Prepare the input OpenMP program

cd $EXAMPLE_DIR &&
cat <<EOF > bug_parallel_for_in_rose.c
#include <omp.h>
#include <stdio.h>
int num_steps = 10000;
int main()
{
    double x=0;
    double sum = 0.0, pi;
    int i;
    double  step = 1.0/(double) num_steps;
    #pragma omp parallel for private(i,x) reduction(+:sum) schedule(static)
    for (i=0; i<num_steps; i=i+1)
    {
        x=(i+0.5)*step;
        sum = sum + 4.0/(1.0+x*x);
    }
    pi=step*sum;
    printf("%f\n", pi);
}
EOF

Generate the binary executable

rose-compiler -rose:openmp:lowering -lxomp -lomp bug_parallel_for_in_rose.c

Show the incorrect output

./a.out

The execution may crash by triggering a non-negative stride assertion in a runtime function. Or it may generate an incorrect PI value rather than 3.141593. Something is obviously wrong in the compilation.

C. Analyze the Bug

ROSE is a source-to-source compiler so it conveniently outputs a transformed source code (with a prefix of rose_) as part of the OpenMP lowering translation step. Let’s see the generated source code.

vim rose_bug_parallel_for_in_rose.c +46

We should see code like the following:

static void OUT__1__4219__(void *__out_argv)
{
 double *sum = (double *)(((struct OUT__1__4219___data *)__out_argv) -> sum_p);
 double *step = (double *)(((struct OUT__1__4219___data *)__out_argv) -> step_p);
 double _p_x;
 double _p_sum;
 _p_sum = 0;
 unsigned int _p_i;
 long p_index_;
 long p_lower_;
 long p_upper_;
 XOMP_loop_default(0,num_steps - 1,_p_i + 1, &p_lower_,&p_upper_);
 for (p_index_ = p_lower_; ((long )p_index_) <= p_upper_; p_index_ = p_index_ + 1) {
   _p_x = (p_index_ + 0.5) *  *step;
   _p_sum = _p_sum + 4.0 / (1.0 + _p_x * _p_x);
 }
 XOMP_atomic_start();
  *sum =  *sum + _p_sum;
 XOMP_atomic_end();
 XOMP_barrier();
}

We can clearly see an outlined function is generated from the parallel region. At line 46, the default loop scheduler (named XOMP_loop_defaut()) is called to calculate the right bounds assigned to each thread to implement the worksharing semantics of an OpenMP for directive.

Now exit the editor (:q in vim). We check the header of the OpenMP runtime layer (named as XOMP), libxomp.h, for the prototype of this scheduler:

vim $ROSE_SRC/src/midend/programTransformation/ompLowering/libxomp.h +72

We can find it has the following form:

72 extern void XOMP_loop_default(int lower, int upper, int stride, long* n_lower,long* n_upper);

Obviously, the third parameter is to pass the stride of a loop to be scheduled. However, the generated source code wrongfully sets the stride to be (_p_i + 1) instead of 1 in rose_bug_parallel_for_in_rose.c:46. Also the variable _p_i is uninitialized so Adding 1 to it may result in any values, including a negative one which triggers the non-negative stride runtime assertion failure.

We exit the editor then open a new file: the ROSE compiler source file doing the code transformation for the parallel for loop (or OpenMP lowering):

vim $ROSE_SRC/src/midend/programTransformation/ompLowering/omp_lowering.cpp +1559

As you can see the call to the runtime scheduler function is inserted at line 1559. The third parameter is copied from orig_stride at line 1557. If we search the source code backwards, we can find that orig_stride is retrieved from a function call named isCanonicalForLoop() at line 1449.

   if (for_loop)
     is_canonical = isCanonicalForLoop (for_loop, &orig_index, & orig_lower, &orig_upper, &orig_stride, NULL, &isIncremental);
...
     SgExprListExp* call_parameters = buildExprListExp(copyExpression(orig_lower), copyExpression(orig_upper), copyExpression(orig_stride),
         e4, e5);
     SgStatement * call_stmt =  buildFunctionCallStmt ("XOMP_loop_default", buildVoidType(), call_parameters, bb1);
     appendStatement(call_stmt, bb1);
...

The function isCanonicalForLoop() is a function within a namespace called SageInterface defined in sageInterface.C.
We exit the editor and open this file to check why it retrieves the wrong stride expression:

vim $ROSE_SRC/src/frontend/SageIII/sageInterface/sageInterface.C +11436

After examining the code (shown below), we found that this function had a bug so it retrieved the right-hand side (rhs) operator of the entire increment expression i=i+1, instead the rhs of the add operator.

// relevant sageInterface.C source code implementing retrieval of the stride expression
 SgExpression* incr = fs->get_increment(); // grab the increment part of the loop
 SgVarRefExp* incr_var = NULL;
 switch (incr->variantT()) {  // handle various forms of loop increment expressions
...
   case V_SgAssignOp: { // res = var + incr (or) var - incr (or) incr + var (not allowed: incr-var)
     incr_var=isSgVarRefExp(SkipCasting(isSgBinaryOp(incr)->get_lhs_operand()));
...
     if(SgVarRefExp* varRefExp=isSgVarRefExp(SkipCasting(isSgBinaryOp(arithOp)->get_lhs_operand()))) {
       // cases : var + incr, var - incr
       incr_var=varRefExp;
       stepast=isSgBinaryOp(incr)->get_rhs_operand();
     } else if(SgVarRefExp* varRefExp=isSgVarRefExp(SkipCasting(isSgBinaryOp(arithOp)->get_rhs_operand()))) {
       if(isSgAddOp(arithOp)) {
         // case : incr + var (not allowed: incr-var)
         incr_var=varRefExp;
         stepast=isSgBinaryOp(incr)->get_lhs_operand();
       }
     }
...

We are done with the diagnosis of the bug.

D. Fix the Bug

You can directly go to 11576 of sageInterface.C to do the fix.

On the line 11576 and 11581, change the variable incr to arithOp.

---11576        stepast=isSgBinaryOp(incr)->get_rhs_operand();
+++11576        stepast=isSgBinaryOp(arithOp)->get_rhs_operand();
...
---11581        stepast=isSgBinaryOp(incr)->get_lhs_operand();
+++11581        stepast=isSgBinaryOp(arithOp)->get_lhs_operand();

Save your changes and quite your editor (e.g. Use :wq to save and quit for vim).

Rebuild and test

First we need to rebuild ROSE to make our modification effective.

cd $ROSE_BUILD && make core -j4 > /dev/null && make install-core > /dev/null

This step may take one minute or two. Some warnings about Makefile may show up but you can safely ignore them for now.

Generate the output

cd $EXAMPLE_DIR && rose-compiler -rose:openmp:lowering -lxomp -lomp bug_parallel_for_in_rose.c

Test the generated executable

Run the binary and it shows 3.141593.

./a.out

The generated source code also calculates the loop stride correctly.

vim rose_bug_parallel_for_in_rose.c +46

We can see the loop scheduler now has the right stride of value 1 used as its 3rd parameter.

46   XOMP_loop_default(0,num_steps - 1, 1,&p_lower_,&p_upper_);

Congratulations! You have learnt how to fix OpenMP implementation bugs.
